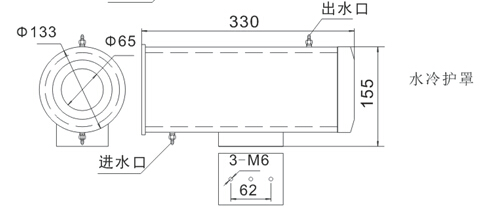

The water-cooled shield is an indispensable equipment in the center of the TV monitoring system, which provides a reliable guarantee for the normal work of the camera in the high temperature and high dust environment. The equipment is made of double stainless steel, the cooling water is circulated through the sandwich to achieve the cooling effect, and the wind string is formed in the front window to prevent dust. The protection ability of the shield reaches the IP56 standard.
