• Explosion-proof junction boxes are auxiliary equipment for explosion-proof industrial televisions and communication systems, with high-quality connectors or terminals installed inside for cable connection or signal distribution.

• Electrical connection, up to 8-pin terminal

• Rated 250V/20A

• Applicable wire diameter 22~14AWG

• Material Stainless steel 304 or 316L

• Protection level IP67

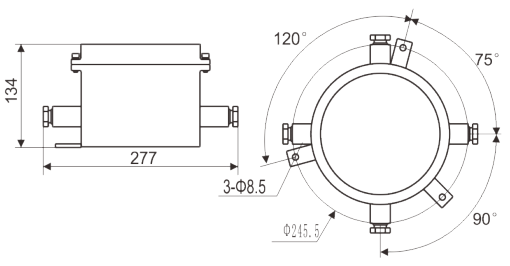

• Overall dimensions: 277*134

• Inner diameter :160*125mm

• Four G-3/4" outlet holes

• Installation method Indoor and outdoor wall-mounted installation

• About 4.6kg

Explosion-proof mark: Exdb IIC T6Gb

Explosion-proof Certificate Number: GYB21.1047X
