Explosion-proof series

Explosion-proof infrared shield

PB-8080ARW

Features

  • The shell is made of 304 stainless steel;

  • Protection class IP68;

  • 2 3/4" outlet holes;

  • Support wiper function;

  • 6 high-power infrared lights, night vision distance ≤80 meters

  • Working voltage DC12V±10%;

  • Operating temperature -20℃ ~+60℃;

  • Windows made of special tempered glass, durable, clear picture quality;

  • Suitable for hazardous environment, such as chemical, petroleum, etc.;

  • Chamber size 260(L)*70(W)*70(H).

Parameters

Explosion-proof mark: Ex db IIC T6 Gb

Explosion-proof Certificate Number: GYB21.1046X

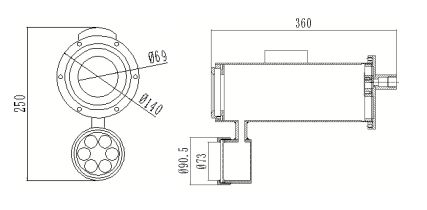

Outline Dimensional Drawing
