Horizontal rotation range

0 ° ~ 355 ° / 0 to 360

Vertical rotation range

35 ° to 45 ° ~ +

Horizontal rotation speed

13°/S

Vertical rotation velocity

1.8 ° / S

Communication mode

RS485 bus (customized remote control)

Communication protocol

Pelco-D/Pelco-P

Angle setting query

Support Angle setting and query

Baud rate

1200bps/2400bps/4800bps/9600bps

Transmission mode

Worm gear drive

Two line sweep

One route, two points can be set

Two point line sweep speed

The value ranges from 6.5 to 13°/S

Number of preset bits

The value ranges from 1 to 128

Address code

The value ranges from 0 to 64

Ambient temperature

- 30 ℃ ~ + 60 ℃

Ambient humidity

≤95% No condensation

Maximum load

20Kg

Class of protection

IP67

Driving power supply

AC24V/2A 50/60Hz

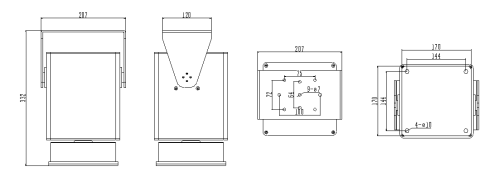

Overall dimension

207*170*332mm

weight

15.2 Kg
