Outdoor head
Infrared vehicle head
PTS-3063
Features
IP66 protection grade, built-in 4000V lightning protection, surge protection;
Support wide dynamic;
Support strong light suppression, area occlusion, fog removal, corridor mode, etc.
Support motion detection, trip wire, license plate recognition, etc.
Integrated structure design, aluminum alloy shell, more robust and durable.
Parameters
Transmission mode |
Turboworm drive |
Power-off protection |
Internal Settings data is not lost after power failure |
Rotation Angle |
Horizontal :360° continuous rotation; Vertical: -85° ~90° (no monitoring blind area) |
Rotational speed |
Horizontal manual control :0~60°/S; Vertical manual control: 0° ~40°/S |
Cruising route |
Four pieces |
Preset bit |
128 |
Class of protection |
IP66 |
Constant temperature |
assorting |
Infrared distance |
The infrared distance of 6 infrared lights is 120M |
Power dissipation |
40W |
Power source |
DC12V±10%/AC24V (optional) |
Ambient temperature |
- 25 ~ + 55 ℃ |
Overall dimension |
370×245mm |
Machine weight |
6.4 Kg |

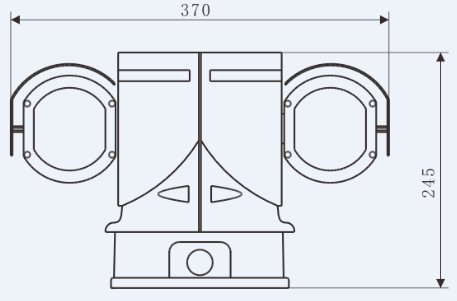

Outline Dimensional Drawing
