Outdoor head

Outdoor heavy load head

Aluminum alloy material die-casting molding
Support a variety of lens preset bit function;
High repeated positioning accuracy, long time running products without gaps;
High precision worm gear drive and stepper motor drive hybrid mode;
Aviation plug design, convenient installation, easy maintenance.
High temperature resistance, aging resistance, corrosion resistance, strong wind resistance, waterproof, acid rain resistance

Rotational speed	Azimuth 0.01° ~ 20°/S Vertical 0.01° ~ 10°/S
Rotation Angle	Azimuth 0 ~ 360° continuous rotation; Vertical +20° ~ -60°
Preset bit	Supports the preset bit function, and can set 200 preset bits (range 1 to 80,131 to 250).
Positioning accuracy	+ / - 0.1 °
repeatability	+ / - 0.1 °
Auxiliary switch	2 groups, passive, normally open
Lens preset bit	Supported, can self-adapt FUJINON, COMPUTAR, KOWA and other lenses
Lens control speed	Zoom and focus control speed can be adjusted continuously
Automatic cruise	8, each with 10 cruise points
OSD menu	nonsupport
Automatic homing	The automatic return time ranges from 1 to 60 minutes
Automatic scanning	A piece of
Communication protocol	Supports Pelco-D, Pelco-P, and user-defined protocols. The baud rate is optional
Communication baud rate	9600 bps
Communication interface	RS485
Network interface	selectable
Heating function	selectable
Input power supply	DC/AC24V±20%,50/60Hz;
Overall power consumption	≤70W
Operating temperature	-25℃ ~ +55℃,90%±3%, non-condensing
Storage temperature	-40℃ to +65℃
load	≤20KG
Machine weight	12KG
Bearer mode	Top load/side load
Transmission mode	Worm gear and worm
Class of protection	IP66

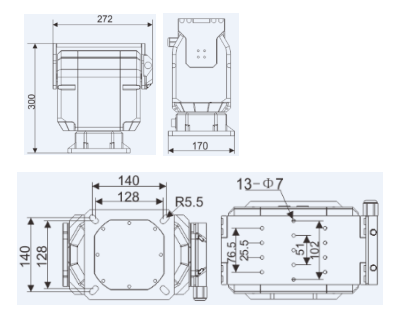

Overall dimension	272mm×170mm×300mm (L×W×H)
