Optical parameter

sensor

1/2.7" CMOS

Optical focal length

5.4-108mm, 20x optical magnification (thousand lens)

shutter

1/25 ~ 1/100000

Aperture value

F1.5 - F2.7

illuminance

Color @0.01Lux, black & white @0.005Lux

Horizontal field Angle

59.6-3.5 degrees (Wide Angle - field of view)

Close-up range

0.1m-2m(Wide Angle - field of view)

Doubling speed

About 3 seconds (optical, wide Angle ~ field of view)

Day and night switching mode

Dual filter switching, automatic, color, black and white

Switch decision mode

Image algorithm, time period, serial trigger

Image parameter

Main code stream

PAL:(1920 × 1080,1280 × 720)25fps

NTSC: (1920 × 1080,1280 × 720)30fps

Auxiliary code stream

PAL: (720 x 576,352 x 288) 25fps

NTCS: (720 x 480,352 x 240) 30fps

Third stream

PAL: (1280×720 × 576,352 ×288) 25fps

NTCS: (1280×720 × 480,352 ×240) 30fps

Digital magnification

16x

Lens initialization

built-in

Focusing mode

Automatic/Manual/Semi-automatic/single-focus (in automatic mode)

Wide dynamic

120dB

Image adjustment

Brightness, contrast, saturation, sharpness, chroma and so on can be adjusted

Image setting

Area blocking, anti-flicker, de-fogging, mirroring, flip, backlight compensation, strong light suppression, bad spot compensation, Watchkeeping, power off memory, electronic stabilization, distortion correction, 3D positioning

ROI

4 Region Settings

Smart function

Smart detection

Perimeter detection, line mixing detection,

Network function

Intelligent alarm

Motion detection, video blocking, network outage, hard disk error, IP conflict, disk full

Support protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,IGMP,QoSRTMP,IPV6,MTU

Access protocol

ONVIF, GB/T28181, Active registration

Compression standard

General function

Three-stream, password protection, heartbeat, IP blacklist and whitelist, off network local storage, off network relay, up to 20 previews

Compression standard

H.264/H.265: Baseline, Main Profile, High Profile, MJPEG

Compress the output bitrate

64 Kbps~16Mbps

Audio compression standard

G.711A, AAC, G711U, G726

Audio compression bit rate

8/16Kbps

Interface definition

Storage function

TF Card Local storage 256G (class10 recommended)

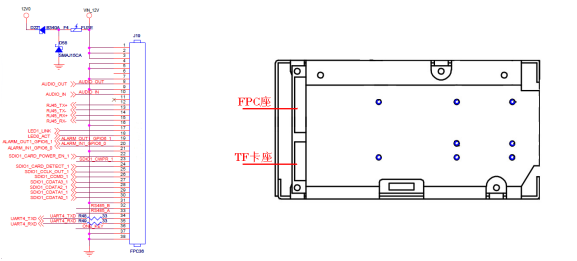

36pin FPC interface

1 RJ45 10M/100M adaptive Ethernet port

Network indicator, 1 set

RS485, 1 channel

RS232, route 1

Alarm input, route 1

Alarm output, route 1

Audio input, 1 channel

Audio output, 1 channel

Power port, 1

SD card data interface, 1 group

reset Indicates a reset

Extension interface

One USB port and one URAT port are used

General range

Communication definition

RS232 interface (VISCA), RS485 interface (Pelco protocol, FV protocol)

Operating temperature

-20℃ -+ 60℃, humidity less than 95%(no condensation)

Power supply

DC 12V±25%

Power dissipation

Static 2.5w Dynamic 4.5w

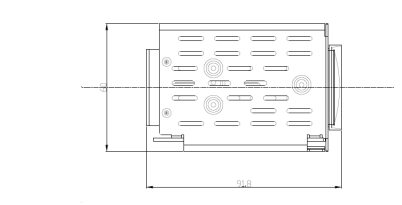

dimension

91.8 * 50 * 60 mm
