Special camera
Six million black light network with POE camera
PTS-IPC-6215AM-PD6
Features
1/1.8 HD sensor, improved photosensitive performance; AI ISP endorsement image clearer; Recommended lens YT10151+IR06161 full color lens
Support alarm input and output;
Multi-browser support: compatible with edge, chrome, safari, firefox and other non-IE kernel browsers;
Can support TF card, support 512G TF card;
Support extended PTZ function, can be up and down left and right control; Support tracking function;
Support humanoid intelligent detection, expand a variety of applications: electronic fence, cross-border detection, departure detection, passenger flow statistics;
Support video occlusion alarm;
Support FTP function;
Support wide dynamic, 3D noise reduction, backlight compensation, white balance, suitable for different monitoring environments;
Support ONVIF protocol, can access third party NVR;
Support screen occlusion, can cover the privacy area;
Support OSD character overlay function, support network timing;
Support audio input and output, audio and video synchronization, support intercom function;
Support automatic maintenance function;
Support mobile phone remote monitoring (iOS, android), support computer remote monitoring;
Built-in audio to achieve perfect monitoring of video recording
Parameters
Optical parameter |
Image sensor |
Starlight 1/1.8" HD sensor |
Lens |
Hd /4mm/6mm@F1.0 lens available |
|
Day and night switch |
Support day and night conversion (support optional IR-CUT) |
|
illuminance |
Color 0.001Lux @(F1.2,AGC ON), black and white 0 Lux with IR |
|
Graphics |
Wide dynamic |
Supports true wide dynamics |
Privacy occlusion |
support |
|
Mirror image |
Support mirror Settings |
|
OSD |
Supports OSD Settings and OSD drag |
|
Intelligent function |
Humanoid detection |
Support humanoid detection function, can detect humanoid intelligent alarm. Extended application: electronic fence, cross-border detection, departure detection, passenger flow statistics |
Voice broadcast |
Supports voice broadcast when a human form is detected. |
|
Light alarm |
Support linkage light alarm when the human form is detected. |
|
Video occlusion |
Support video occlusion alarm |
|
video |
compress |
H.264, H.265 |
Resolution |
Main stream: 6MP(3200*1800)/5MP(2880*1616)/4MP(2560*1440)/ 3MP(2304*1296)/2MP(1920*1080) |
|
Substream: 720P(1280*720)/448P(800*448)/D1(704*576)/360P(640*360) |
||
Video frame rate |
Six million 20 frames, five million 30 frames |
|
Audio frequency |
Audio frequency |
Built-in microphone |
Encoding format |
Supports G711U and G711A |
|
network |
Ethernet |
RJ-45 10M/100M adaptive |
agreement |
ONVIF, P2P, CGI, HTTP, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, FTP, IP Filter |
|
Access protocol |
ONVIF protocol/Private protocol /CGI/P2P protocol |
|
client |
P6SLite/ Dr. Rui, Easyvms, WEB (Non-IE kernel browsers such as Edge, Chrome, Safari, and Firefox are supported:) |
|
Feature |
Audio frequency |
Support audio input audio output, support power amplifier function |
Give an alarm |
Support alarm input, alarm output function |
|
resetting |
Support reset function |
|
store |
Supports TF card function, up to 512G |
|
Basic parameter |
Night vision distance |
≤60 m |
Supply voltage |
DC12V±10% |
|
Power dissipation |
≤6W |
|
Class of protection |
IP66 |
|
Operating temperature |
- 30 ℃ ~ + 55 ℃ |
|
weight |
540g |

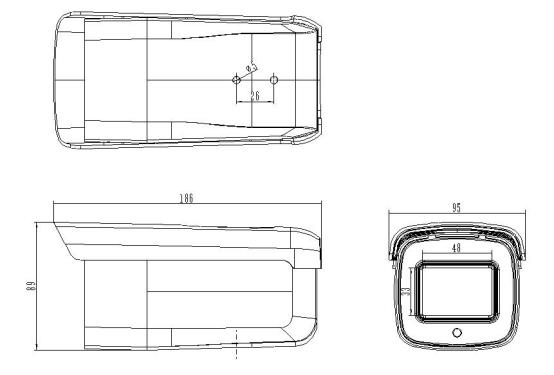

Outline Dimensional Drawing
